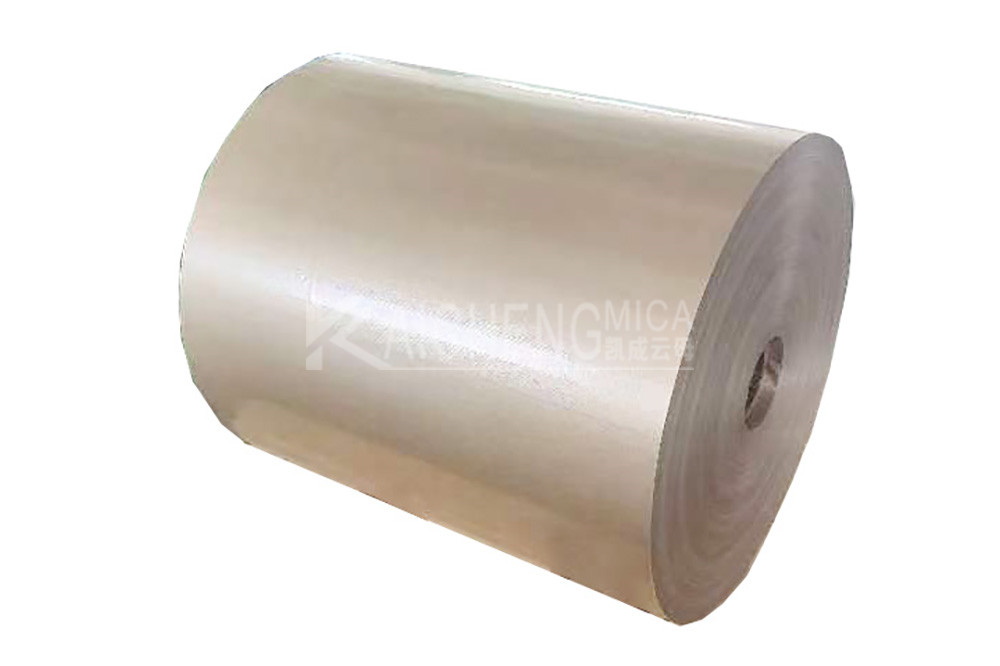

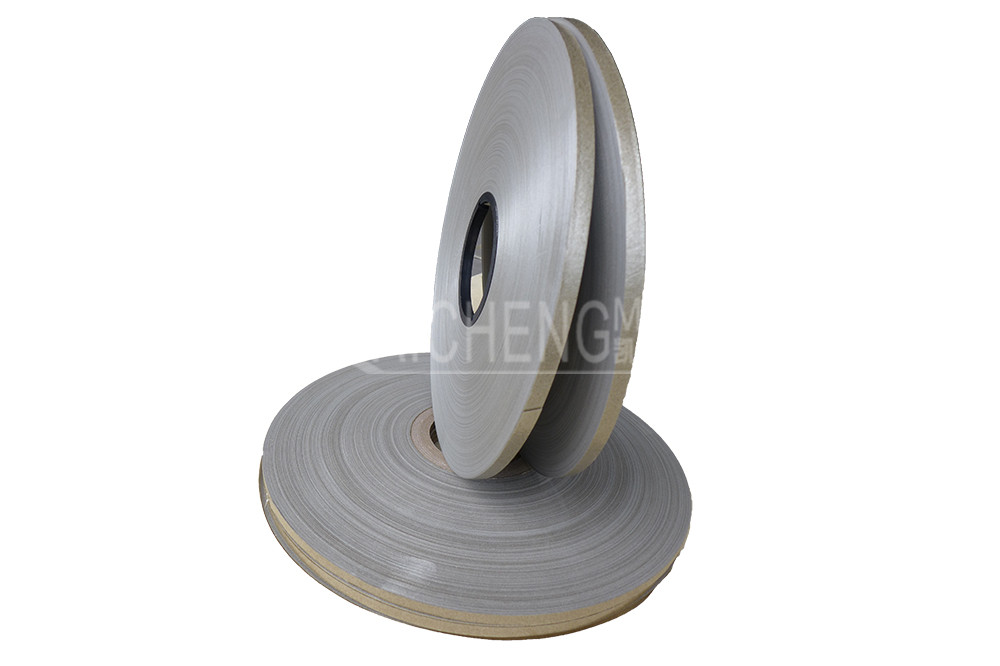

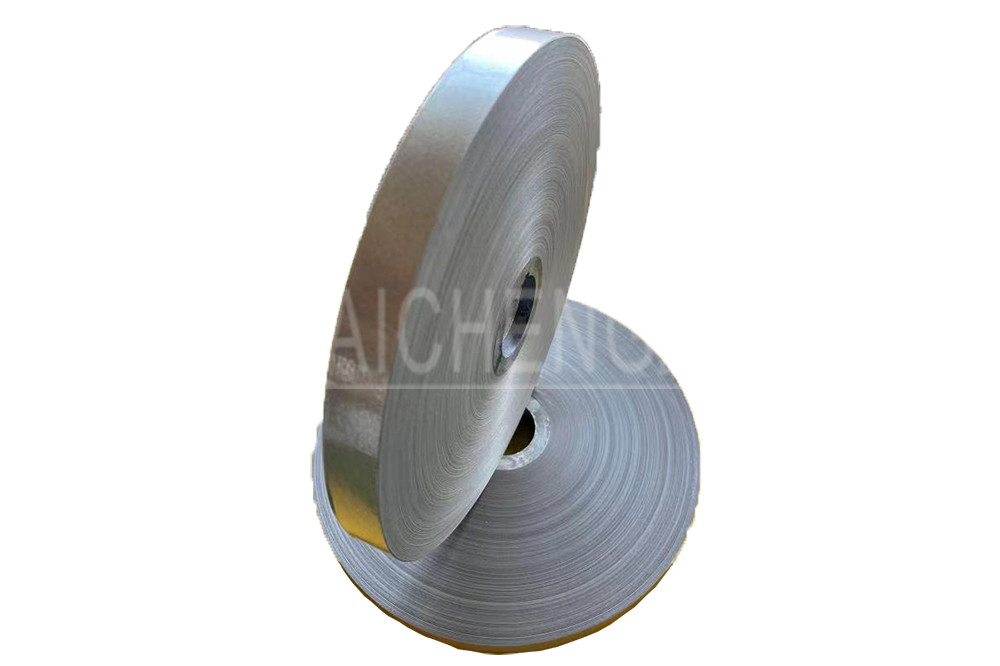

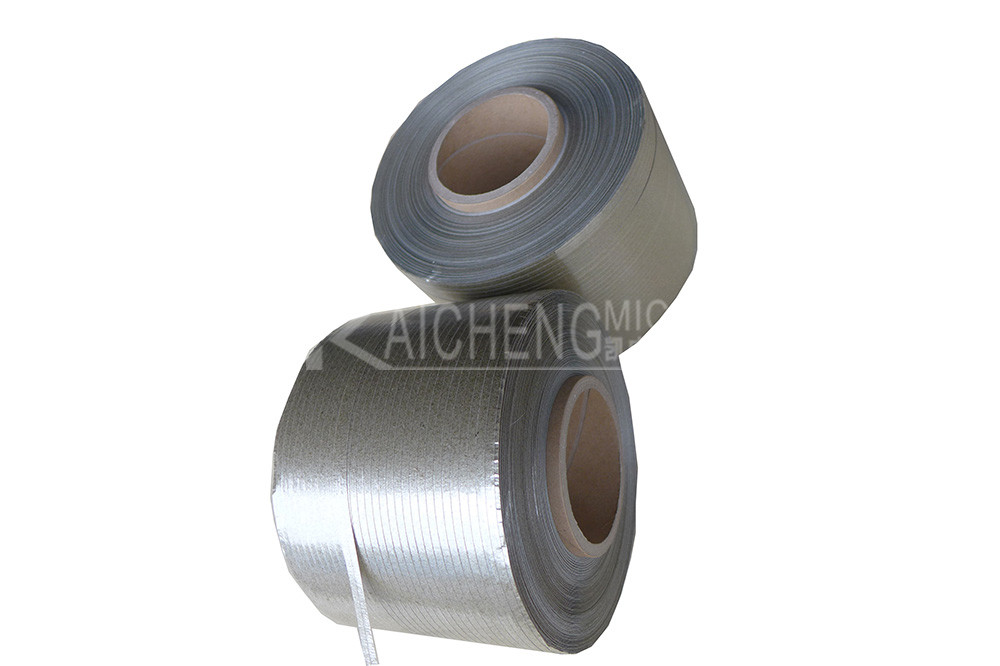

Fire resistant phlogopite tape is composed of phlogopite paper and glass fiber. Its adhesive is silicone resin, which is baked at a high temperature and uniform speed, and then cut by a special slitter. It is mainly used to manufacture fire-resistant wires and cables. The temperature resistance grade of fire-resistant phlogopite tape is not less than 850 ° C.
| type | Single side glass fiber reinforced type | Double sided glass fiber reinforced type | Single side glass fiber composite PE film type | ||||
| Specifications | K08C125 | K11C150 | K120C160 | K130C170 | K14C195 | K17C215 | K14C205 |
| thickness | 0.08±0.01 | 0.11±0.01 | 0.12±0.012 | 0.13±0.015 | 0.14±0.015 | 0.17±0.015 | 0.14±0.015 |
| ration | 125±5 | 150±10 | 160±10 | 170±10 | 215±10 | 215±10 | 205±12 |
| Mica content | 80±5 | 100±5 | 110±5 | 120±5 | 140±8 | 140±8 | 144±8 |
| Glass fiber content | 32±5 | 32±2 | 32±2 | 32±2 | 32±2 | 45±2 | 21±2 PE20g/㎡ |
| Gum content | 13±3 | 18±3 | 18±3 | 18±2 | 22±3 | 30±4 | 20±4 |
| Dielectric strength | ＞1.2 | ＞1.2 | ＞1.2 | ＞1.2 | ＞1.4 | ＞1.4 | ＞1.4 |
| tensile strength | ＞80 | ＞120 | ＞120 | ＞120 | ＞120 | ＞120 | ＞120 |
